Deye 48v 3.6kw 5kw 8kw 10kw 12kw 15kw Solar Hybrid Inverter Single Phase Three Phase With Wifi Module For European Mark
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlace Of Origin | Shanghai, China | Brand Name | Deye |
---|---|---|---|
Output Current | 24-35A | Input Voltage | AC220V |
Output Voltage | 125-425V | Output Type | Single |
Size | 420*670*233mm | Inverter Efficiency | 97.60% |
High Light | 12kw 15kw solar hybrid inverter,10kw 15kw solar hybrid inverter,10kw 15kw solar hybrid inverter |

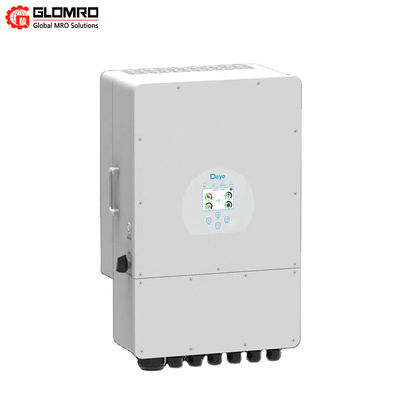

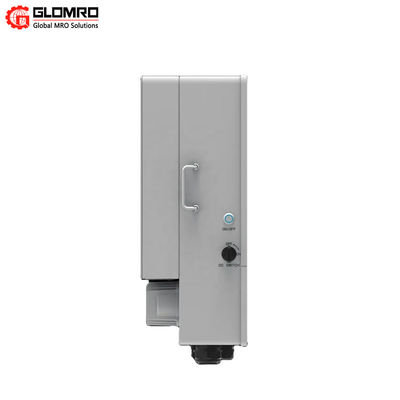

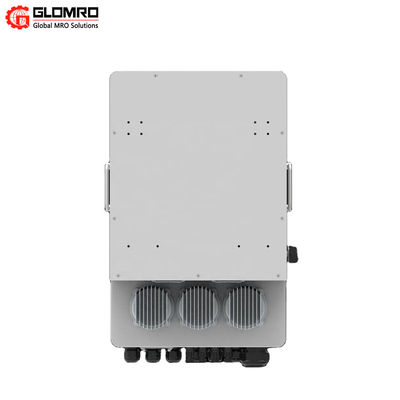

Deye 48v 3.6kw 5kw 8kw 10kw 12kw 15kw single phase three phase solar hybrid inverters with wifi module for European mark
Solar hybrid inverter
Since the solar inverter and the solar charging controller are in the same cabinet, the installation is convenient, saving space, but also increases the difficulty of maintenance.
Product parameters | |
Place of Origin | Shanghai, China |
Brand Name | Deye |
Model Number | SUN-8K-SG01LP1-EU |
Input Voltage | AC220V |
Output Voltage | 125-425V |
Output Current | 24-35A |
Output Frequency | 50/60Hz |
Output Type | Single |
Size | 420*670*233mm |
Type | DC/AC Inverters |
Inverter Efficiency | 97.60% |
Certificate | CE;EMC;IVD |
Warranty | 5 YEARS |
Weight | 32kg |
Ambient Temperature | -25~60℃ |
Battery Type | Lead-acid or Lithium-ion |
Protection | IP65 |
Battery Voltage Range (V) | 40~60V |
Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 |
Battery Input Data | |||
Battery Type | Lead-acid or Li-lon | ||
Battery Voltage Range (V) | 40~60V | ||
Max. Charging Current (A) | 190A | 210A | 240A |
Max. Discharging Current (A) | 190A | 210A | 240A |
Charging Curve | 3 Stages / Equalization | ||
External Temperature Sensor | Optional | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
PV String Input Data | |||
Max. DC Input Power (W) | 10400W | 13000W | 15600W |
Rated PV Input Voltage (V) | 550V (150V~800V) | ||
MPPT Range (V) | 200V-650V | ||
Start-up Voltage (V) | 160V | ||
Full Load DC Voltage Range | 350-650 | ||
PV Input Current (A) | 13+13 | 26+13 | |
No.of MPPT Trackers | 2 | ||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | |
AC Output Data | |||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W |
Max. AC Output Power (W) | 8800W | 11000W | 12000W |
Peak Power (off grid) | 2 times of rated power, 10 S | ||
AC Output Rated Current (A) | 12A | 15A | 18A |
Max. AC Current (A) | 18A | 23A | 27A |
Max. Continuous AC Passthrough (A) | 50A | ||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | ||
Grid Type | Current Harmonic Distortion | ||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | ||
Efficiency | |||
Max. Efficiency | 97.60% | ||
Euro Efficiency | 97.00% | ||
MPPT Efficiency | 99.90% | ||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor | ||
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage | |||
Protection | |||
Surge protection | DC Type II / AC Type II | ||
Certififications and Standards | |||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | ||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | ||
General Data | |||
Operating Temperature Range (℃ ) | -25~60℃ , >45℃ Derating | ||
Cooling | Smart cooling | ||
Noise (dB) | <30 dB | ||
Communication with BMS | RS485; CAN | ||
Weight (kg) | 36.8 | ||
Size (mm) | 422W×658H×281D | ||
Protection Degree | IP65 | ||
Installation Style | Wall-mounted | ||
Warranty | 5 years |
In addition, the ordinary inverter can be separately connected to the battery, not connected to the solar panel, and the solar hybrid inverter is generally used with the solar panel.
