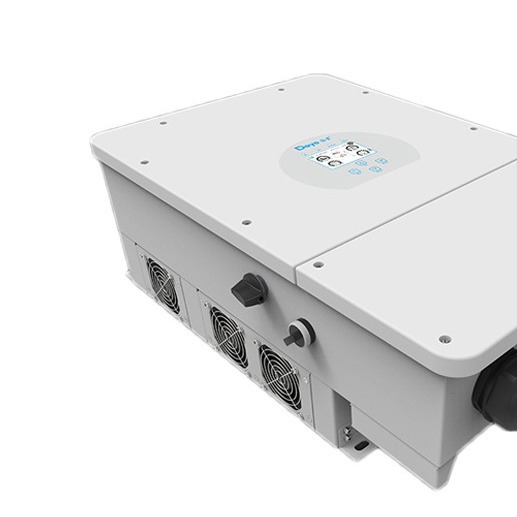

220V Deye Hybrid Solar Power Inverter for Air Conditioning
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlace Of Origin | Shanghai, China | Brand Name | Deye |
---|---|---|---|
Output Current | 24-35A | Input Voltage | AC220V |
Output Voltage | 125-425V | Weight | 32kg |
Battery Voltage Range (V) | 40~60V | Protection | IP65 |
High Light | Hybrid Solar Power Inverter,220V Solar Power Inverter,35A solar inverter for air conditioner |
Deye hybrid solar air conditioning best-selling price concessions
Solar hybrid inverter
In China, the solar hybrid inverter refers to the built-in solar controller on the basis of the ordinary inverter. Compared with the ordinary inverter, the solar hybrid inverter has a built-in solar controller, which can improve the power generation rate of the solar panel and maximize the utilization rate of the whole solar system.
Product parameters | |
Place of Origin | Shanghai, China |
Brand Name | Deye |
Model Number | SUN-8K-SG01LP1-EU |
Input Voltage | AC220V |
Output Voltage | 125-425V |
Output Current | 24-35A |
Output Frequency | 50/60Hz |
Output Type | Single |
Size | 420*670*233mm |
Type | DC/AC Inverters |
Inverter Efficiency | 97.60% |
Certificate | CE;EMC;IVD |
Warranty | 5 YEARS |
Weight | 32kg |
Ambient Temperature | -25~60℃ |
Battery Type | Lead-acid or Lithium-ion |
Protection | IP65 |
Battery Voltage Range (V) | 40~60V |
Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 |
Battery Input Data | |||
Battery Type | Lead-acid or Li-lon | ||
Battery Voltage Range (V) | 40~60V | ||
Max. Charging Current (A) | 190A | 210A | 240A |
Max. Discharging Current (A) | 190A | 210A | 240A |
Charging Curve | 3 Stages / Equalization | ||
External Temperature Sensor | Optional | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
PV String Input Data | |||
Max. DC Input Power (W) | 10400W | 13000W | 15600W |
Rated PV Input Voltage (V) | 550V (150V~800V) | ||
MPPT Range (V) | 200V-650V | ||
Start-up Voltage (V) | 160V | ||
Full Load DC Voltage Range | 350-650 | ||
PV Input Current (A) | 13+13 | 26+13 | |
No.of MPPT Trackers | 2 | ||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | |
AC Output Data | |||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W |
Max. AC Output Power (W) | 8800W | 11000W | 12000W |
Peak Power (off grid) | 2 times of rated power, 10 S | ||
AC Output Rated Current (A) | 12A | 15A | 18A |
Max. AC Current (A) | 18A | 23A | 27A |
Max. Continuous AC Passthrough (A) | 50A | ||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | ||
Grid Type | Current Harmonic Distortion | ||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | ||
Efficiency | |||
Max. Efficiency | 97.60% | ||
Euro Efficiency | 97.00% | ||
MPPT Efficiency | 99.90% | ||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor | ||
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage | |||
Protection | |||
Surge protection | DC Type II / AC Type II | ||
Certififications and Standards | |||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | ||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | ||
General Data | |||
Operating Temperature Range (℃ ) | -25~60℃ , >45℃ Derating | ||
Cooling | Smart cooling | ||
Noise (dB) | <30 dB | ||
Communication with BMS | RS485; CAN | ||
Weight (kg) | 36.8 | ||
Size (mm) | 422W×658H×281D | ||
Protection Degree | IP65 | ||
Installation Style | Wall-mounted | ||
Warranty | 5 years |
