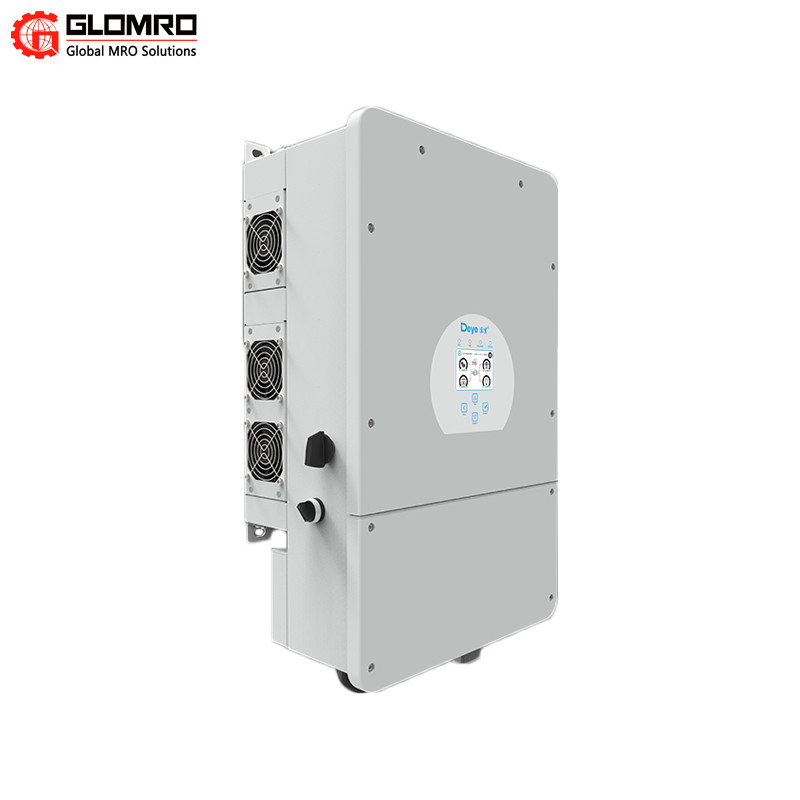

10000 Watt 8kw Solar Hybrid Off Grid Inverter 24-35A Deye

Model Number Deye-8KW/10K/12K--3
Minimum Order Quantity 1
Price USD1435.2-1534.2
Delivery Time 3-7working days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 9999units

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Place Of Origin Shanghai, China Brand Name Deye
Output Current 24-35A Input Voltage AC220V
Output Frequency 50/60Hz Output Type Single
Size 420*670*233mm Weight 32kg
Ambient Temperature -25~60℃ Protection IP65
High Light

10000 Watt solar hybrid off grid inverter


8kw solar hybrid off grid inverter


35A grid connected solar inverter

Leave a Message
Product Description

Deye 10000 watt inverter 8kw inverter eye grid-connected off-grid hybrid inverter

Solar hybrid inverter

Since the solar inverter and the solar charging controller are in the same cabinet, the installation is convenient, saving space, but also increases the difficulty of maintenance. In addition, the ordinary inverter can be separately connected to the battery, not connected to the solar panel, and the solar hybrid inverter is generally used with the solar panel.

Product parameters
Place of Origin Shanghai, China
Brand Name Deye
Model Number SUN-8K-SG01LP1-EU
Input Voltage AC220V
Output Voltage 125-425V
Output Current 24-35A
Output Frequency 50/60Hz
Output Type Single
Size 420*670*233mm
Type DC/AC Inverters
Inverter Efficiency 97.60%
Certificate CE;EMC;IVD
Warranty 5 YEARS
Weight 32kg
Ambient Temperature -25~60℃
Battery Type Lead-acid or Lithium-ion
Protection IP65
Battery Voltage Range (V) 40~60V


Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Input Data
Battery Type Lead-acid or Li-lon
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 190A 210A 240A
Max. Discharging Current (A) 190A 210A 240A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 10400W 13000W 15600W
Rated PV Input Voltage (V) 550V (150V~800V)
MPPT Range (V) 200V-650V
Start-up Voltage (V) 160V
Full Load DC Voltage Range 350-650
PV Input Current (A) 13+13 26+13
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1+1 2+1
AC Output Data
Rated AC Output and UPS Power (W) 8000W 10000W 12000W
Max. AC Output Power (W) 8800W 11000W 12000W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 12A 15A 18A
Max. AC Current (A) 18A 23A 27A
Max. Continuous AC Passthrough (A) 50A
Output Frequency and Voltage 50/60Hz; 230/400Vac (Three phase)
Grid Type Current Harmonic Distortion
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage
Surge protection DC Type II / AC Type II
Certififications and Standards
Grid Regulation IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ ) -25~60℃ , >45℃ Derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 36.8
Size (mm) 422W×658H×281D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
