5KW-20KW Solar Lithium Ion Battery Energy Storage Battery High Voltage Stacked Lithium Iron Phosphate Home
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Capacity (KWh) | 5.12-20.48 | Type Of Cell | LFP(LiFePO4) |
|---|---|---|---|
| Rated Voltage (V) | 102.4-409.6 | Rated Operating Current (A) | 50 |
| Rated Working Power (KW) | 5.12 ~ 20.48 | Operating Voltage Range (V) | 91.2-115.2-364.8-460.8 |
| Means Of Communication | CAN/RS485 | Operating Temperature Range | Charge: 0-45°C/ Discharge: -20-50C |
| High Light | 20KW Solar Lithium Ion Battery,5KW Solar Lithium Ion Battery,5000w Energy Storage Battery |
||
Product Description

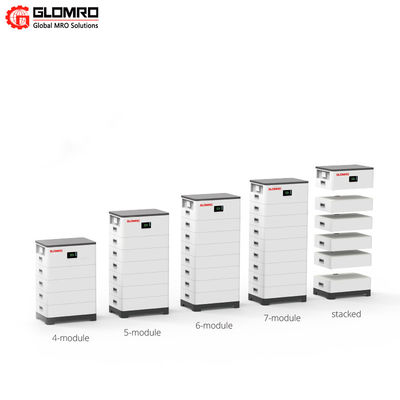

5KW - 20KW Energy Storage Battery High Voltage Stacked Lithium Iron Phosphate Home
Lithium battery pack
Lithium battery pack refers to one or more lithium cell plus battery protection board, has a specific function of the output. A lithium battery pack consists of multiple cells that form a single physical module that provides higher voltage and capacity. For example, a battery module uses four cells in series to provide a nominal voltage of 12V, or multiple cells in parallel to provide greater capacity. The components of lithium batteries are connected in series and parallel. The parallel battery packs require that each battery has the same voltage, and the output voltage is equal to the voltage of one battery. The parallel battery packs provide stronger current. The series battery pack does not require too much, as long as the battery capacity is about the same. A series battery pack can provide a higher voltage. The more perfect protection function of lithium battery pack should be composed of two modules: one is the protection of the electric subgrade board, the other is the intelligent judgment base board.
| Type of Product | High voltage stacked battery |
| Product Model Number | BXT-H1 |
| Nominal capacity (KWh) | 5.12-20.48 |
| Type of cell | LFP(LiFePO4) |
| Rated voltage (V) | 102.4-409.6 |
| Rated operating current (A) | 50 |
| Rated working power (KW) | 5.12 ~ 20.48 |
| Operating voltage range (V) | 91.2-115.2-364.8-460.8 |
| Means of communication | CAN/RS485 |
| Operating temperature range | Charge: 0-45°C/ Discharge: -20-50C |
| Class of protection | IP65 |
| Life of cycle | Ten years |
| model | BXT-H3 | BXT-H4 | BXT-H5 |
| Battery Type | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Nominal voltage (V) | 153.6 | 204.8 | 256 |
| Nominal capacity (Ah) |
7.68 | 10.24 | 12.8 |
| Number of cycles (times) |
6000-6500 times | 6000-6500 times | 6000-6500 times |
| Charging voltage (V) |
175.2 | 233.6 | 292 |
| Weight (g) |
115 | 145 | 175 |
| Product size (mm) |
550 x380x697.5 | 550 x380x826.5 | 550 x380x955. 5. " Ten years |
| Shelf life | Ten years | Ten years | Ten years |
| model | BXT-H6 | BXT-H7 | BXT-H8 | Battery base + high voltage box |
| Battery Type | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Nominal voltage (V) | 307.2 | 358.4 | 409.6 | 102.4 V |
| Nominal capacity (Ah) |
15.36 | 17.92 | 20.48 | 6000-6500mAh |
| Number of cycles (times) |
6000-6500 times | 6000-6500 times | 6000-6500 times | 6000-6500 times |
| Charging voltage (V) |
350.4 | 408.8 | 467.2 | 468.2 |
| Weight (g) |
205 | 235 | 265 | 21.8 |
| Product size (mm) |
550 x380x1084. 5 | 550 x380x1213. 5 | 550 x380x1342. 5 | 550x380x1342.5 |
| Shelf life | Ten years | Ten years | Ten years | Ten years |
