18v 24v Residential Solar Power System Foldable Solar Panel Portable Power Pack 60W 80W 100W 120W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | Home | Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
---|---|---|---|
Battery Type | Lithium Ion | Controller Type | MPPT |
Mounting Type | Ground Mounting | Load Power (W) | 300W, 600W |
Output Voltage (V) | 110V/220V | Output Frequency | 100KHZ |
Battery | 14.8V24AH | Weight | About 2.65kg |
High Light | 24v Residential Solar Power System,18v Residential Solar Power System,60W Portable Power Pack |

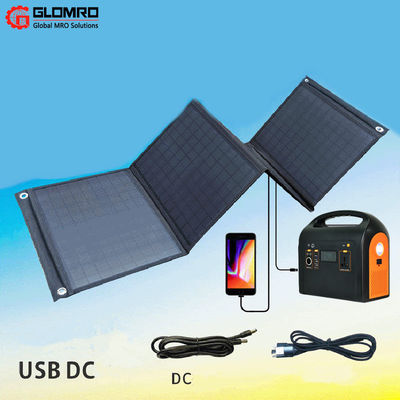

18v 24v Foldable Solar Panel Generator Portable Power Pack 60W 80W 100W 120W
Hybrid solar system
Solar photovoltaic power generation system: refers to the use of solar modules according to the principle of photovoltaic effect to directly convert solar energy into electric energy phenomenon. Photovoltaic application products: independent products powered by photovoltaic principle. High conversion long life foldable solar panel suitable for portable power station and solar system, solve camping, picnic, outdoor shooting, RV, fishing and other electricity problems.
Warranty | 1year |
Free installation service | NO |
Place of Origin | Shanghai, China |
Brand Name | BAXIT |
Application | Home |
Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
Battery Type | Lithium Ion |
Controller Type | MPPT |
Mounting Type | Ground Mounting |
Load Power (W) | 300W, 600W |
Output Voltage (V) | 110V/220V |
Output Frequency | 100KHZ |
Work Time (h) | 12 hours |
Certificate | CE |
Pre-sales project design | Y |
Solar charging current | 18V 3A/4A/5A |
Output port | 2*USB & 1*DC |
DC Output | 18V/5.55A |
Usage | Home Application Outdoor |
Battery | 14.8V24AH |
Weight | About 2.65kg |
Material | Chip+PET+EVA+Waterproof Fabric |
Fold Size | 425*360*20mm |
Unfold Size | 1660*425*5mm |
Accessories | DC Cable+USB Cable+Carabiner+ Connector |
High conversion Long Service Life Foldable Solar Panel For Portable Power Station And Solar Energy System | ||||
Foldable Solar Panel Model: | BXT603 | BXT804 | BXT1005 | BXT1206 |
Peak Power(Pm): | 60W | 80W | 100W | 120W |
Solar Cell Lamination: | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
Cell efficiency: | Up to 22% | Up to 22% | Up to 22% | Up to 22% |
Voltage at max power (Vmp) | 18V | 18V | 18V | 18V |
Current at max power (Imp) | 3.3A | 4.4A | 5.5A | 6.6A |
Open circuit voltage(Voc): | 21.4V | 21.4V | 21.4V | 21.4V |
Operating Temperature: | -10℃~+65℃ | -10℃~+65℃ | -10℃~+65℃ | -10℃~+65℃ |
Best working temperature: | +25℃ | +25℃ | +25℃ | +25℃ |
Dimension(unfolded): | 1350*400*4mm | 1615*400*10mm | 1650*400*10mm | 2243*494mm*10mm |
Dimension(folded): | 396*360*10mm | 400*367*10mm | 400*367*10mm | 494*670*10mm |
