350w 400w Optimizer Solar Panels For Solar Power Systems
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | DC/DC Converters | Output Type | Single |
---|---|---|---|
Output Current | 10A | Output Frequency | 50/60HZ |
Size | 130*132*24.5mm | Weight | 0.8kg |
Certificate | Ce/tuv | Product Name | Power Optimizer |
High Light | 400w Optimizer Solar Panels,350w Optimizer Solar Panels,350w solar power optimizer |
Best-selling 350w 400w Optimizer solar panels for solar power systems
Solar photovoltaic optimizer
Features
1. Module added-on, compatible with third party inverter, available for the new or the existing solar power station
2. Flexible system design for maximum space utilization
3. 25 years lifespan, perfectly matching the solar module
Product parameters | |
Place of Origin | Shanghai, China |
Brand Name | BAXIT |
Model Number | BXT400 |
Type | DC/DC Converters |
Output Type | Single |
Output Current | 10A |
Output Frequency | 50/60HZ |
Size | 130*132*24.5mm |
Weight | 0.8kg |
Certificate | ce/tuv |
Product name | power optimizer |
Efficiency | 99.50% |
Package | 24pcs per box |
Output | 0~450w |
Ingress Protection | IP67 |
Input(output) Connector | pv connector |
Working Temperature | -40 ~ +85 ℃ |
Relative Humidity | 0-100% |
Warranty | 25 Years |
Delivery Time | 15 days |
Production Name | BXT350W | BXT400W | BXT450W |
INPUT | |||
MAX input power | 350W | 450W | 450W |
MAX input voltage | 60V | 75V | 75A |
MAX input current | 10A | 13A | 13A |
MIN MPPT voltage | 16V | 12V | 16V |
OUPUT | |||
Output Power | 0~350W | 0~450W | 0~450W |
Output Voltage | 0~60V | 0~75V | 0~75V |
Communication | Wireless | Wireless/PLC | Wireless/PLC |
MAX system voltage | 1000V | 1500V | 1000V |
MAX output current | 11A | 13A | 13A |
EFFICIENCY | |||
MAX Conversion Efficiency | 99.50% | ||
INSTALLATION SPECIFICATION | |||

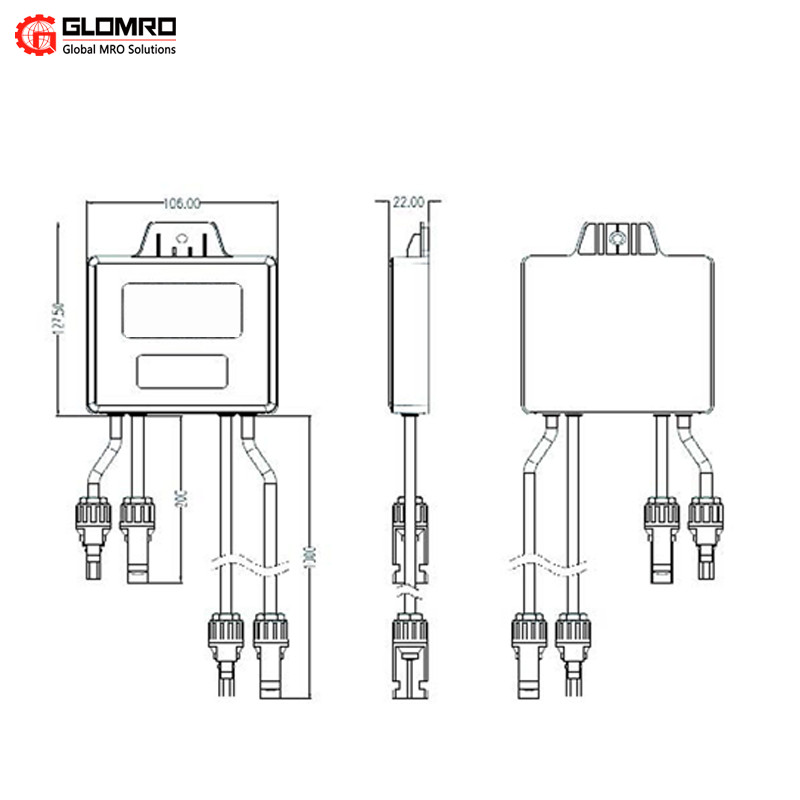

Size | 127.5*106*22mm | 130.3*109.6*25mm | 152*133*25.9mm |
Weight | 530g | 588g | 540g |
Input(output) Connector | pv connector | ||
Working Temperature | -40 ~ +85 ℃ | ||
Ingress Protection | IP65 | IP67 | IP67 |
Relative Humidity | 0~100% | ||
STANDARD COMPLIANCE | |||
EMC | IEC61000-6-2,IEC61000-6-3 | ||
Safety Regulations | IEC62109-1(Class II Safety) | ||
Overvoltage Category | III | ||
Certificate | TUV,CQC,CSA,CE |
